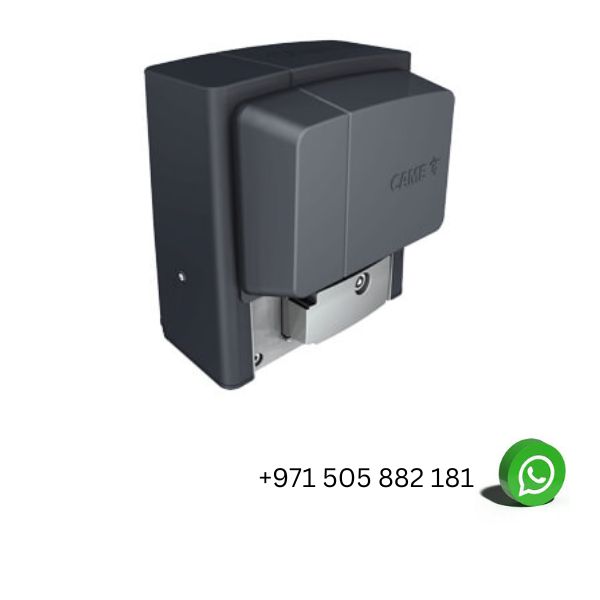

The CAME automatic gate opener uses encoder technology for precise and smooth movement. It’s designed to easily incorporate magnetic limit switches for extra safety. The control panel has terminal connectors, a display, and can store information for up to 250 users. Safety features can be set up to directly manage sensitive safety edges. With self-checking safety features, you can rely on this opener for safe and consistent operation.
Additionally, this opener comes with CONNECT technology, enabling remote digital control through a gateway or locally via the CAME KEY. Elevate your gate system with the advanced technology and performance of the CAME automatic gate opener.
Technical Specification
| BX-74 | BX-78 | |
| Protection rating (IP) | 44 | 44 |
| Power supply (V-50/60 Hz) | 230 AC | 230 AC |
| Power supply to motor (v) | 230 AC | 230 AC |
| Absorption (A) | 2, 7 | 2, 5 |
| Power (W) | 560 | 520 |
| Manouvering speed (m/min) | 10, 5 | 10, 5 |
| Duty/cycle (%) | 30 | 30 |
| Cycles/Hour | 17 | 17 |
| Thrust (N) | 600 | 800 |
| Operating temperature (ºC) | -20 – +55 | -20 – +55 |
| Motor’s heat protection (ºC) | 150 | 150 |
