2,500 د.إ

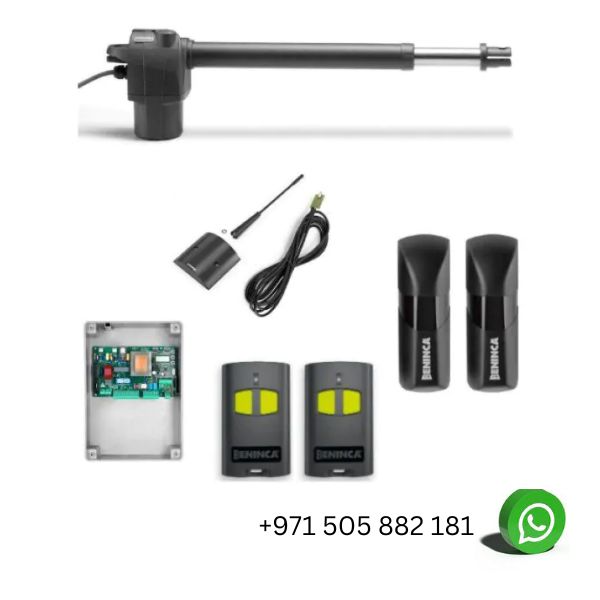

Beninca Bill 50m Swing Gate Motor

Category:

Beninca Bill 50m Advanced Swing Gate Motor for Enhanced Security | Abu Dhabi

Irreversible 230 Vac electromechanical geared motor | Neat design and size, particularly suited to forged iron gates | Easy and quick to install due to compact size and installation geometry | Worm protected by a scraper ring and stainless steel stem, suitable for use in dusty and sandy environments or where there are aggressive atmospheric agents | Easy access release from above | Available in right or left version

Motor supply 230 Vac (50-60Hz)
Max absorbed current 1.1 A
Maximum thrust 2800 N
Opening time 21”
Standard stroke 500 mm
Max stroke 520 mm
Duty cycle 30%
Protection level IP54
Operating temperature -20°C /+50°C
Lubrication GREASE
Leaf max dimension 4,0 m
Weight 6.9 kg
N. motors per pallet 48
