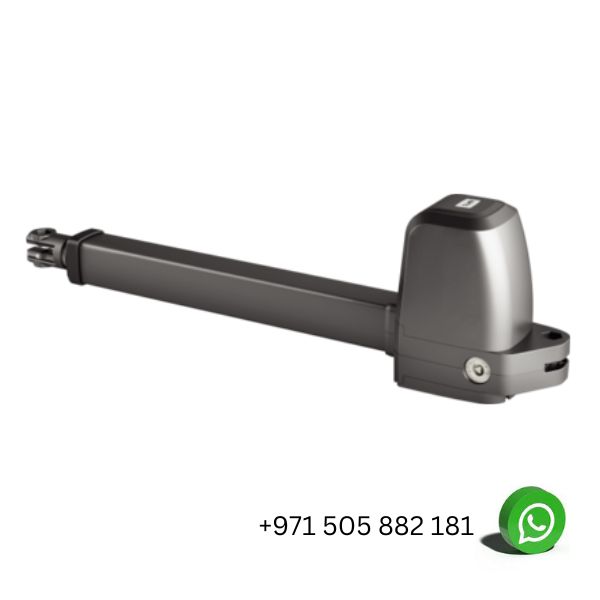

Athos is designed to be space-saving and allows maximum installation flexibility to be installed even in a niche.
Front & rear brackets are aligned, so that the installation is easy & quick.
The motor can open in just 14 sec at 90° (mod. A25) or 16 sec. (mod A40).
Thanks to its sturdy structure and to its high-end materials such as die-cast aluminum shells and bronze crown transmission,
Athos guarantees maximum strength, reliability, and longer life span.
BFT ATHOS AC A25 Kit Includes:
2 x ATHOS AC A25 Swing Gate Motors.
1 x ALENA SW2 Control Board.
1 x DESME A15 Pair of self-aligning photocells. Range 30 m.
1 x RADIUS B LTA 230 R1 Flashing light with incorporated antenna.
2 x MITTO B RCB04 R1Transmitter with 4 channels. Range 50/100 m.
1 x Push button.
Technical data sheets:
Control unit : ALENA SW2
Board power supply : 230 V
Motor voltage : 230 V
Power consumption : 280 W
Max. width of door/gate wing : 2.5 m
Max. weight of door/gate wing : 700 kg
Useful rod stroke : 300 mm
Maximum angle : 110 °
Cycle time : 14 s
Type of limit switch : work time
Slowdown : Yes
Locking : Mechanical
Release : Triangle key
Impact reaction : Electronic clutch
Frequency of use : Semi intensive
Protection rating : IP54
Environmental conditions : -20 ÷ 55 °C
Interconnectivity : no
