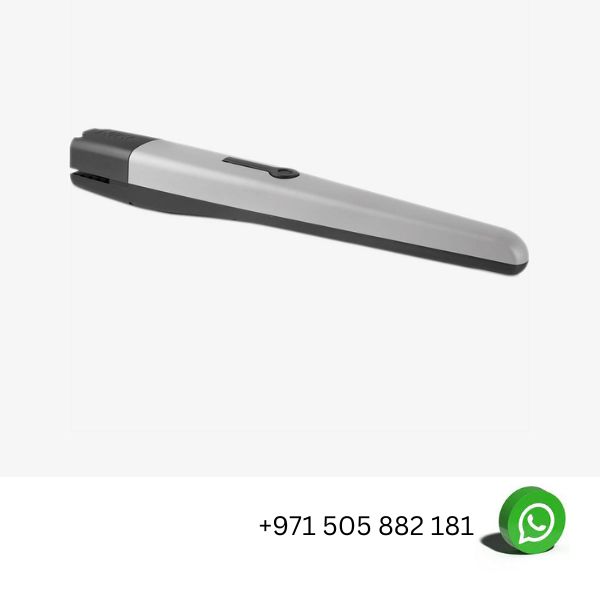

Nice Toona 7 Kit TO7024
For swing gates with leaves up to 7 m. Electromechanical gear motor, surface mounted, powered at 24 Vdc, with magnetic encoder. Ideal for industrial installations, designed for intensive use.
Reliable: durability thanks to the housing, made up of two tough aluminium shells with polyester paint finish which is more resistant to atmospheric agents.
Internal moving parts completely in steel, light alloys and technopolymers.
Silent: patented layout of internal parts and lead nut in bronze.
Generously sized and practical connection compartment: rapid and easy access from above to internal parts located in the upper section of the motor.
Control unit Moonclever MC824H:
• simple programming, by means of a single key;
• self-learning of opening and closing limit positions;
• automatic fault diagnostics;
• programming of pause time;
• pedestrian pass door;
• deceleration on opening and closing;
• obstacle detection with dual technology;
• operation in the event of a power failure by means of optional rechargeable batteries (PS324);
• provision for connection of latest generation resistive sensitive edges.
TO7024 – 2 surface-mounted electromechanical gear motors with Nice Key release
ON2 – 2 transmitter 433.92 MHz, 2 channels
MC824H – 1 control unit with OXI plug0in receiver
Technical Specifications
| Code |
TO7024 |
| Electrical data | |
| Power supply (Vac 50 Hz) |
– |
| Power supply (Vdc) |
24 |
| Absorption (A) |
5 |
| Power (W) |
120 |
| Built-in capacitor (?F) |
– |
| Performance data | |
| Speed (m/s) |
0.013 |
| Force (N) |
2700 |
| Work cycle (cycles/hour) |
41 |
| Dimensional and general data | |
| Protection level (IP) |
44 |
| Working temp. ( °C Min/Max) |
-20 ÷ +50 |
| Dimensions (mm) |
1200x128x150 h |
| Weight (kg) |
15 |
