- Gate weight: 300kg, length: to 4m
- Opening time up to 90°: 7-22s
- Power supply/motor power supply: 230V/230V
- possibility to set operating parameters
- non-retractable mechanism ensures very high resistance
- to heavy pressure wind and attempted forcible opening
- easy and safe disengagement with individual key
- adjustable torque value.
Technical Data of the Activator:
- main power: 220-230 V
- motor power supply: 230 VDC
- power supply for external lighting: 230V-60W
- accessory power supply: 24 V DC / 350 mA
- drive force: 3000N
- opening time to 90 ° without slowing area and maximum speed: 7 to 22 seconds
- Number of storable remote control devices: max. 128 channels
- working temperature: -20 ° C to +60 ° C
- security class: IP 54

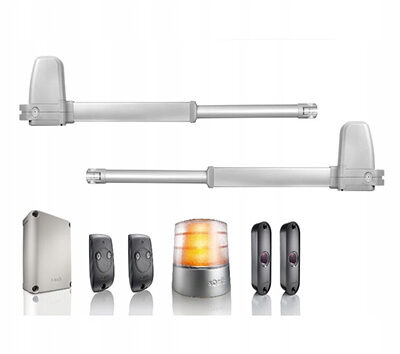

Somfy Ixengo JL Package Contains:

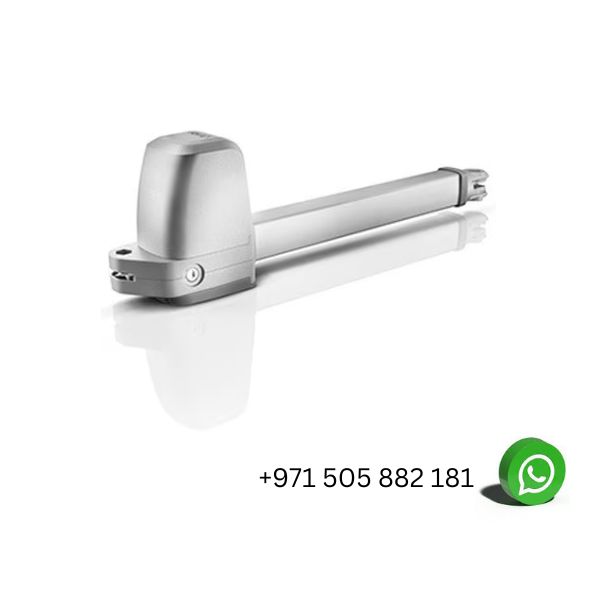

- 2 x actuator Ixengo JL 230V
- 1 x switch CB 230 RTS
- 2 x Keytis RTS 2-channel remote control
- 1 x lamp ECO Pro 230V
- 1 x Pair of Master Pro photocells – Bitech
- 1 x Push Button
