BFT KUSTOS BT A40 Swing Gate Motor up to 500 kg 4 m leaf in Dubai UAE.
Product code P935100 00002
Complete kit 24 V for swing gates up to 500 kg in weight and 4 m in length.
BFT KUSTOS ULTRA BT A40 kit contains:

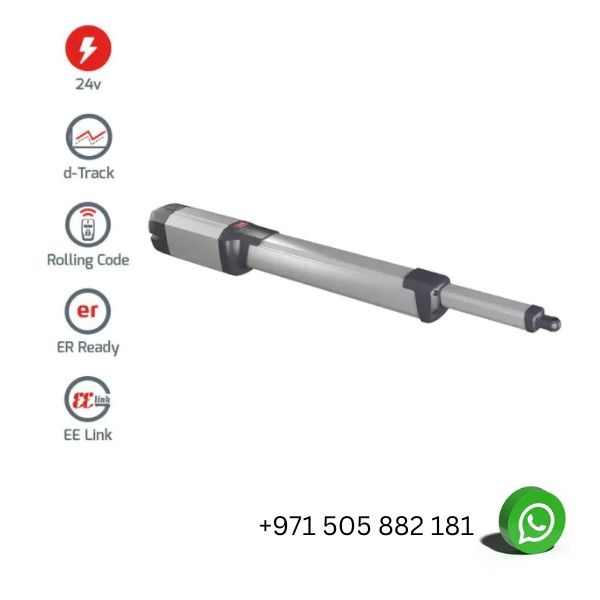

2 x KUSTOS BT A40 Irreversible electromechanical operator 24 V for swing gates weighing up to 500 kg and 4m.
1 x THALIA Control panel with display for one or two 24V electromechanical operators for swing gates.
1 x DESME A15 Pair of self-aligning photocells. Range 30 m. Power supply 24 V ac/dc.
1 x RADIUS B LTA 24 R1 Flashing light with incorporated antenna for motors with power supply 24 V.
2 x BFT Mitto2 B RCB Remote Control | 1 x Push Button | 2 x Fixing Bracket.
Technical data sheets:
Control unit : THALIA
Board power supply : 230 V
Motor voltage : 24 V
Power consumption : 40 W
Max. width of door/gate wing : 4 m
Max. weight of door/gate wing : 500 kg
Useful rod stroke : 355 mm
Maximum angle : 126 °
Cycle time : 17 s
Type of limit switch : Magnetic
Slowdown : Yes
Locking : Mechanical
Release : Personal key
Impact reaction : D-Track
Frequency of use : intensive
Protection rating : IP44
Environmental conditions : -20 ÷ 55 °C
Interconnectivity : no
