FAAC Swing Gate Motor in Abu Dubai.
FAAC 415 230V
FAAC 415 Swing Gate Motor in Abu Dubai.
- FAAC 415 230V Electromechanical operator.
- Max width single leaf 2,5 – 4 m
- Off axis” thrust operator.
- Opening and closing mechanical stops included.
- Horizontal exit for cables to allow near to ground installation (low installation).
Dimensions and technical specifications:
- Power supply voltage : 220-240V~ 50/60 Hz
- Electric motor : Asynchronous single phase
- Max. power : 300 W
- Max expressed force : 3000 N (*)
- Rod max speed : 16 mm/s (*)
- Rod travel : 300 mm (400 mm without mechanical stops)
- Max. leaf opening angle : 110°
- Operating ambient temperature : -20°C ÷ + 55°C
- Thermal protection : 140°C
- Protection class : IP54
- Weight : 7.8 Kg
- Use frequency : S3 – 30%
- Max. leaf width : 2.5 m.
- Mounting brackets : Rear attachment to be welded/screwed
- Dimensions (LxDxH) : 836 x 101 x 147 mm.

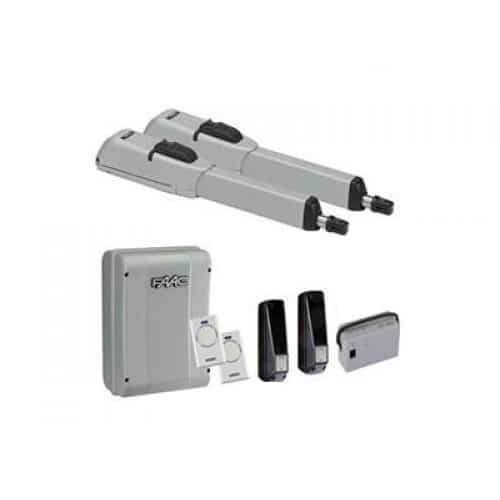

FAAC 415 Kit Includes:
- 2 x FAAC 415 Swing Gate Motor.
- 1 x XLED flashing light.
- 1 x Lock with key.
- 1 x E045S control unit.
- 1 x Enclosure mod. E for electronic control units.
- 1 x XF 433 MHz receiver.
- 1 x Pair of photocells XP 20 BD.
- 1 x 2 channels transmitter XT2 433 SLH LR.
- 1 x Push button.
