- Gate weight: 250kg, length: to 3m
- Opening time up to 90°: 7-19s
- 2 Keytis RTS 2-channel remote controls, lamp, photocell set
- Semi-intensive use
- Power supply/motor power supply: 230V/230V
- Somfy Ixengo JS 230V RTS ECO Comfort Pack,
- set for swing gates o 250 kg weight per gate leaf (1216546).
- Special application for installation: Fix & Go
- possibility to set operating parameters
- non-retractable mechanism ensures very high
- resistance to heavy pressure wind and attempted forcible opening.
- easy and safe disengagement with individual key
- adjustable torque value.
Technical Data of the Actuator:
- main power: 220-230 V
- motor power supply: 230 VDC
- power supply for external lighting: 230V-60W
- accessory power supply: 24 V DC / 350 mA
- drive force: 3000N
- opening time to 90 ° without slowing area and maximum speed: 7 to 19 seconds
- Number of storable remote control devices: max. 128 channels
- working temperature: -20 ° C to +60 ° C
- security class: IP 54

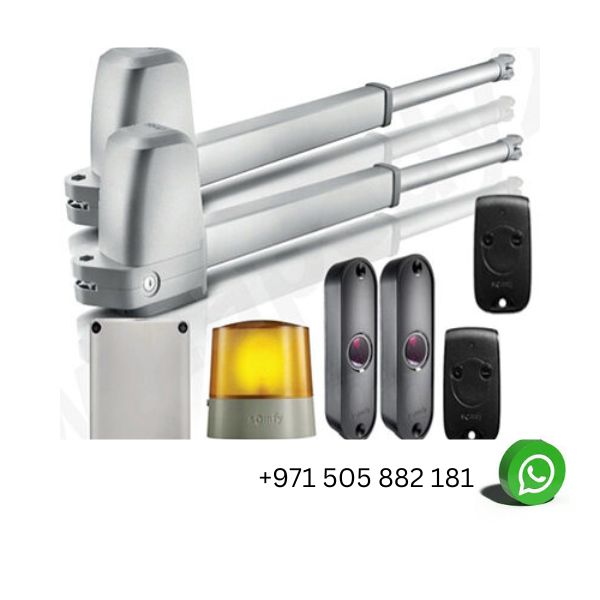

Somfy Ixengo Js Package Contains:
- 2 x Actuator Ixengo JS 230V.
- 1 x switch CB 230 RTS.
- 2 x Keytis RTS 2-channel remote control.
- 1 x Lamp ECO Pro 230V
- 1 x Set of Master Pro photocells Bitech.
- 1 x Push Button.
