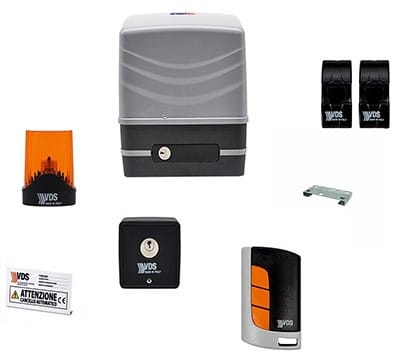

VDS SIMPLY 600 Kg Sliding Gate Motor in Abu Dhabi
VDS SIMPLY 600 Kg Sliding Gate Opener:
- Leaf weight 600 kg
- Structure in die-cast aluminium, powder painted
- Steel and cast gears obtained from solid
- Lithium grease lubrications of mechanical parts against corrosion, oxidation and rust
- Very quiet operation
- High-performance electric motor
- Release device with customized key
- Available with and without encoder
- Electronic torque control
- Pre- wired and easy programming software
- Available with and without control unit
- Control unit box with air-stop seal against moisture and insects
- Anti-squashing system and slowing down function (en 12453)
- Optional kit battery backup
- Power supply 230Vac – 24Vcc.
Performance requirements:
- Operating cycle: semi-intensive 230Vac, intensive 24Vcc
- Frequency of use: 50% (230Vac) – 80% (24Vcc)
- Speed: 10 mt./min. (230 Vac) – 12 mt./min. (24 Vcc).
Technical Datasheet:
- Power supply : 230 Vac
- Leaf weight : 600 KG
- Pinion : M4-Z12
- Engine RPM : 1400 RPM
- Average absorption : 1,3 A
- Absorbed power : 250 W
- Condenser : 12,5 UF
- Operator weight : 8 KG
- Noise level : < 30 DBA
- Environmental conditions : -20/+55° C
- Protection degree : IP44
